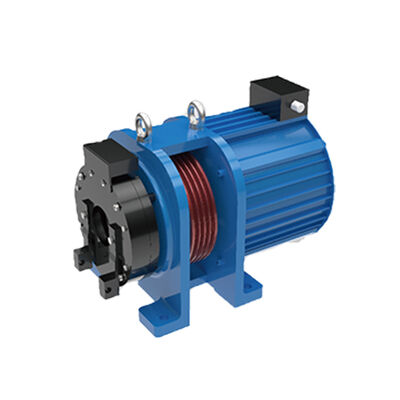

0.5~1.75m/s Rated Speed Elevator Traction Machine with 450-630KG Load Capacity and 380V Rated Voltage

সাক্ষ্যদান
চীন SHANGHAI SUNNY ELEVATOR CO.,LTD সার্টিফিকেশন
চীন SHANGHAI SUNNY ELEVATOR CO.,LTD সার্টিফিকেশন
নতুন বছরের আগমনের সাথে সাথে আমি আশা করি সংস্থাগুলি এর স্কেল প্রসারিত করবে, তার ব্যবসায়ের বিকাশ ঘটবে, এর ব্যবসা বিকাশ করবে এবং এর আর্থিক সংস্থান প্রসারিত করবে।

—— মেলিয়া

পণ্যের গুণমান পরিচালনার উপর জোর দেওয়া, গুণমানের দীর্ঘমেয়াদী কার্যকর প্রক্রিয়া তৈরি করা।

—— ইউলি

তোমার দর্শন লগ করা অনলাইন চ্যাট এখন

0.5~1.75m/s Rated Speed Elevator Traction Machine with 450-630KG Load Capacity and 380V Rated Voltage

0.5~1.75m/s Rated Speed Elevator Traction Machine with 450-630KG Load Capacity and 380V Rated Voltage

বড় ইমেজ :  0.5~1.75m/s Rated Speed Elevator Traction Machine with 450-630KG Load Capacity and 380V Rated Voltage

পণ্যের বিবরণ:
উৎপত্তি স্থল: চীন
পরিচিতিমুলক নাম: SUNNY
সাক্ষ্যদান: CE,ISO9001
মডেল নম্বার: SN-MY06-C
প্রদান:
ন্যূনতম চাহিদার পরিমাণ: 1 সেট
মূল্য: $180~250
প্যাকেজিং বিবরণ: ধারক
ডেলিভারি সময়: 15 ~ 30 দিন
পরিশোধের শর্ত: এল/সি, টি/টি, ওয়েস্টার্ন ইউনিয়ন
যোগানের ক্ষমতা: 5000PCS/মাস
বিস্তারিত পণ্যের বর্ণনা
লোড: 450-630 কেজি গতি: 0.5~1.75m/s
ট্র্যাকশন অনুপাত: 2:1 রেটেড ভোল্টেজ: 380
রেট করা বর্তমান(A): 2.2 টাইপ: লিফট ট্র্যাকশন মেশিন
পণ্যের নাম: লিফট ট্র্যাকশন মেশিন মডেল: লিফট ট্র্যাকশন মেশিন
ব্রেকিং টর্ক: > 700

0.5~1.75m/S Rated Speed Elevator Traction Machine Spare Parts Elevator

type Load (kg) Speed
(m/s)
Roping Rise(m) Motor Parameter Brake Parameter Sheave Parameter
Rated power
(kW)
Rated Torque
(N.m)
Rated Speed (RPM) Rated Frequency
(Hz)
Rated Current
(A)
Voltage
(V)
Current (A) Voltage (V) Braking Torque (N.m) nxd(mm) Pitch
(mm)
β γ
MY06-450C/050P 450 0.5 ≤30 1.5 170 80 16 3.3 380 2.2 DC110 >700 4-Φ8 12 95 30
MY06-450C/100P 1 ≤50 3 160 32 6.6
MY06-450C/150P 1.5 ≤75 4.3 240 48 10
MY06-450C/175P 1.75 ≤90 5 280 56 11.5
MY06-630C/050P 630 0.5 ≤30 2 240 80 16 4.8 5-Φ8 12 95 30
MY06-630C/100P 1 ≤50 4 160 32 9.5
MY06-630C/150P 1.5 ≤75 6 240 48 13.5
MY06-630C/175P 1.75 ≤90 7 280 56 16.2
0.5~1.75m/s Rated Speed Elevator Traction Machine with 450-630KG Load Capacity and 380V Rated Voltage 0

0.5~1.75m/s Rated Speed Elevator Traction Machine with 450-630KG Load Capacity and 380V Rated Voltage 1

0.5~1.75m/s Rated Speed Elevator Traction Machine with 450-630KG Load Capacity and 380V Rated Voltage 2

0.5~1.75m/s Rated Speed Elevator Traction Machine with 450-630KG Load Capacity and 380V Rated Voltage 3

0.5~1.75m/s Rated Speed Elevator Traction Machine with 450-630KG Load Capacity and 380V Rated Voltage 40.5~1.75m/s Rated Speed Elevator Traction Machine with 450-630KG Load Capacity and 380V Rated Voltage 5

FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
