140/180/240/300n Tension Elevator Tensioning Device Lift Components Parts

140/180/240/300n Tension Elevator Tensioning Device Lift Components Parts

বড় ইমেজ :  140/180/240/300n Tension Elevator Tensioning Device Lift Components Parts

পণ্যের বিবরণ:
উৎপত্তি স্থল: চীন
পরিচিতিমুলক নাম: SUNNY
সাক্ষ্যদান: CE,ISO9001
মডেল নম্বার: এসএন-জেডজেসি
প্রদান:
ন্যূনতম চাহিদার পরিমাণ: 1 সেট
মূল্য: $20~50
প্যাকেজিং বিবরণ: কাঠের বাক্স
ডেলিভারি সময়: 7 ~ 15 দিন
পরিশোধের শর্ত: এল/সি, টি/টি, ওয়েস্টার্ন ইউনিয়ন
যোগানের ক্ষমতা: 10000 পিসি/মাস
বিস্তারিত পণ্যের বর্ণনা
নাম: এলিভেটর টেনশনিং ডিভাইস প্রযোজ্য: লিফট যন্ত্রাংশ
ব্যবসার ধরন: প্রস্তুতকারক ওয়ারেন্টি সময়: 12 মাস
প্যাকিং: শক্ত কাগজে প্যাক করা মডেল: এলিভেটর টেনশনিং ডিভাইস
টাইপ: এলিভেটর টেনশনিং ডিভাইস মেঝে উচ্চতা: H≤150
উত্তেজনা: 140/180/240/300n তারের দড়ি ব্যাস: 6/6.3 মিমি
শেভ পিচ ব্যাস: 200/240 মিমি

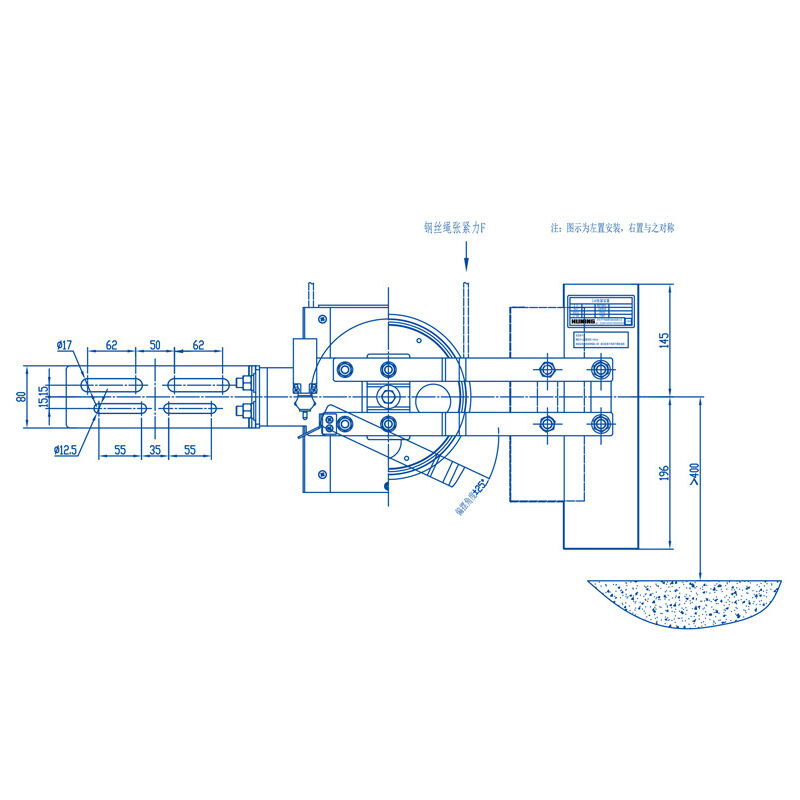

140/180/240/300n Tension Elevator Tensioning Device Lift Components Parts



Parameter Table



Pulley pitch diameter(mm)

Wire rope diameter

Rope diameter

(mm)

Tension force

Tension

force

(N)

Building height(reference)

Installation

method

200/240 6/6.3 140N H≤60m Left/Right
180N 60
240N 90
300N 120



140/180/240/300n Tension Elevator Tensioning Device Lift Components Parts 0



140/180/240/300n Tension Elevator Tensioning Device Lift Components Parts 1



140/180/240/300n Tension Elevator Tensioning Device Lift Components Parts 2



140/180/240/300n Tension Elevator Tensioning Device Lift Components Parts 3



140/180/240/300n Tension Elevator Tensioning Device Lift Components Parts 4



FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
