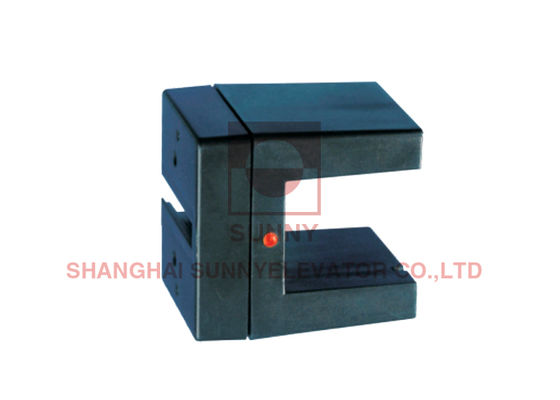

CE Certification Elevator Leveling Slot Sensor For Elevator Electrical Parts

সাক্ষ্যদান
চীন SHANGHAI SUNNY ELEVATOR CO.,LTD সার্টিফিকেশন
চীন SHANGHAI SUNNY ELEVATOR CO.,LTD সার্টিফিকেশন
নতুন বছরের আগমনের সাথে সাথে আমি আশা করি সংস্থাগুলি এর স্কেল প্রসারিত করবে, তার ব্যবসায়ের বিকাশ ঘটবে, এর ব্যবসা বিকাশ করবে এবং এর আর্থিক সংস্থান প্রসারিত করবে।

—— মেলিয়া

পণ্যের গুণমান পরিচালনার উপর জোর দেওয়া, গুণমানের দীর্ঘমেয়াদী কার্যকর প্রক্রিয়া তৈরি করা।

—— ইউলি

তোমার দর্শন লগ করা অনলাইন চ্যাট এখন

CE Certification Elevator Leveling Slot Sensor For Elevator Electrical Parts

CE Certification Elevator Leveling Slot Sensor For Elevator Electrical Parts

বড় ইমেজ :  CE Certification Elevator Leveling Slot Sensor For Elevator Electrical Parts

পণ্যের বিবরণ:
উৎপত্তি স্থল: চীন
পরিচিতিমুলক নাম: SUNNY
সাক্ষ্যদান: CE,ISO9001
মডেল নম্বার: Et126ns2p
প্রদান:
ন্যূনতম চাহিদার পরিমাণ: 10 পিসি
মূল্য: $7~10
প্যাকেজিং বিবরণ: স্ট্যান্ডার্ড রফতানি প্যাকেজ
ডেলিভারি সময়: 7 ~ 15 দিন
পরিশোধের শর্ত: এল/সি, টি/টি, ওয়েস্টার্ন ইউনিয়ন
যোগানের ক্ষমতা: 1000 পিসি/মাস
বিস্তারিত পণ্যের বর্ণনা
নাম: লিফট লেভেলিং স্লট সেন্সর প্রযোজ্য: লিফট সরঞ্জাম
ব্যবসায়ের ধরন: নির্মাতা পরিবহন: সমুদ্র পরিবহন
পণ্যের নাম: লিফট যন্ত্রাংশ ভোল্টেজ: 10...30VDC
মডেল: লিফট লেভেলিং স্লট সেন্সর পণ্য: লিফট লেভেলিং স্লট সেন্সর
আউটপুট: PNP বা NPN তাপমাত্রার সীমা: -20 ~+70 ° ℃ ℃

CE Certification Elevator Leveling Slot Sensor For Elevator Electrical Parts



Feature Description

High-speed response type

With a repeatability accuracy of up to 0.5mm, the positioning is more precise

Infrared light above 10000% is on standby, dust-proof, smoke-proof and steam-proof

It is equipped with built-in output short-circuit protection, surge protection and overload protection circuits

Multi-functional output (NPN/PNP/NO/NC

Protection grade IP65(IEC)



Model ET126NS2P
Power supply 10...30VDC
Riple <10%
Detected object Φ2.0 Above metal objects
Sensitivity adjustment fixed
Emission Infrared(880nm)
Output PNP or NPN
Max. Load Current ≤200mA
No Load Current 15mA or Less
Voltage Drop(Sensor On) <2.5V
Response Time ≤1ms
Short Circuit Protection Yes
Electric Protections Yes
Temperature Limits -20 ~+70°℃
Storage temperature and humidity -40 ~ +80℃ 95% RH
Light Immunity >100,000Lux
Protection Degree En60529 IP65
EMC EN 12015, EN 12016
Certification CE
Connection Type PVC Cable









CE Certification Elevator Leveling Slot Sensor For Elevator Electrical Parts 0



CE Certification Elevator Leveling Slot Sensor For Elevator Electrical Parts 1



CE Certification Elevator Leveling Slot Sensor For Elevator Electrical Parts 2

CE Certification Elevator Leveling Slot Sensor For Elevator Electrical Parts 3



FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
